Five-axis Gantry
The five-axis gantry machining center is a state-of-the-art machine tool that integrates the base and worktable into one unit, providing unparalleled precision and rigidity for a wide range of machining applications. Equipped with an 8000 RPM high-rigidity and high-precision BT40 spindle, this machine features a semi-enclosed design with all-around protection, offering exceptional water resistance and preventing damage from dust and debris.

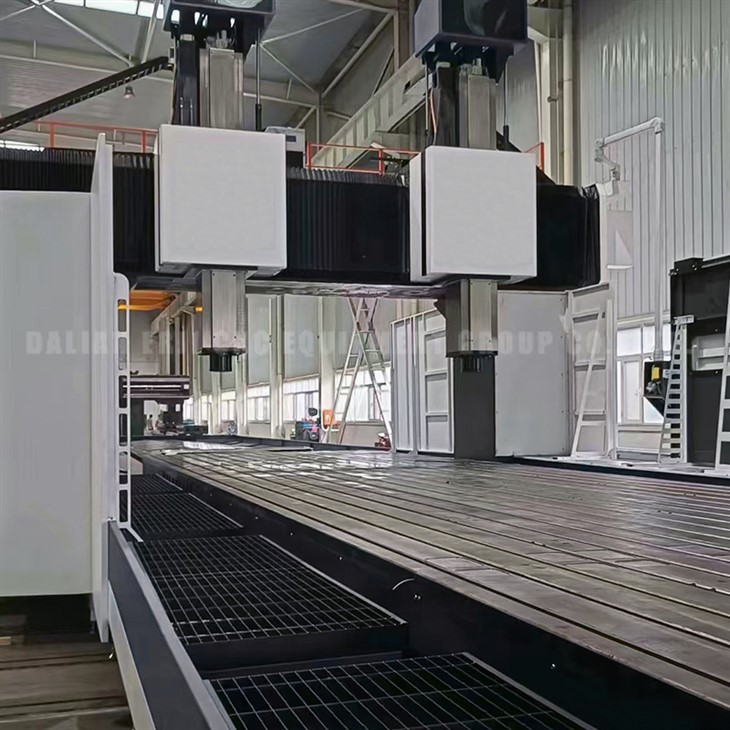

Five-axis gantry
The five-axis gantry machining center is a state-of-the-art machine tool that integrates the base and worktable into one unit, providing unparalleled precision and rigidity for a wide range of machining applications. Equipped with an 8000 RPM high-rigidity and high-precision BT40 spindle, this machine features a semi-enclosed design with all-around protection, offering exceptional water resistance and preventing damage from dust and debris.
One of the most significant advantages of this machining center is its five-axis capability, which enables simultaneous milling, drilling, and tapping of complex shapes and contours. The five-axis configuration offers a much greater degree of flexibility compared to traditional three-axis machines, allowing operators to produce higher quality parts in less time. Additionally, the machine can be easily programmed using CAD/CAM software, which helps to reduce errors and optimize the machining process.
The base of the machine is made from high-quality cast iron, ensuring stable and reliable performance even under heavy loads. Furthermore, the integrated worktable provides a large working area, making it ideal for machining large and complex parts. The table features a robust T-slot design to facilitate the clamping of workpieces, and its high load capacity allows for the use of larger and heavier fixtures.

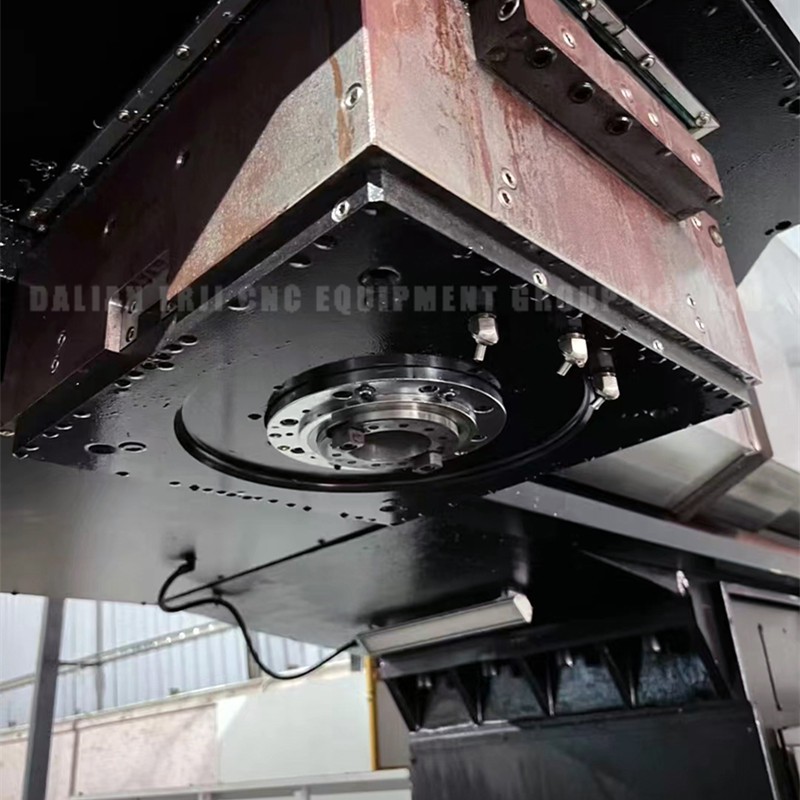

As mentioned earlier, the machine's spindle is one of its key features, providing high-speed and high-precision machining capability. Its BT40 taper and HSK-A50 optional configuration offer excellent compatibility with a wide range of cutting tools, ensuring high cutting quality and improved tool life. The spindle is also equipped with an advanced cooling system to maintain a stable temperature and reduce thermal deformation.
Another essential feature of this machine is its semi-enclosed design with all-around protection. The machine's structure, including the enclosure, is designed to prevent water from entering the machining area, ensuring that all components are properly protected. This design also helps to reduce noise levels and improve the overall safety of the machine.
In conclusion, the five-axis gantry machining center is an excellent option for any manufacturer seeking a highly versatile, reliable, and precise machining solution. Its integrated base and worktable, high-rigidity spindle, and semi-enclosed design make it an ideal choice for machining a wide range of materials, from soft aluminum to tough titanium. Moreover, its advanced programming capabilities and five-axis configuration make it a highly efficient and productive machine that can help manufacturers stay competitive in today's fast-paced manufacturing environment.
Technical parameters of gantry
Canonical Parameter
|
range of work |
unit |
model GMB40100 |
|
Processing trip |
||
|
x-Axis itinerary |
mm |
11000 |
|
y-Axis itinerary |
mm |
4500 |
|
z-Axis itinerary |
mm |
1500 |
|
Longmen width |
mm |
4100 |
|
Distance from the work table to the spindle end surface |
mm |
150-1650 |
|
staging |
||
|
bed dimension |
mm |
4000×10000 |
|
Workbench bearing |
T/m² |
15 |
|
T-groove size size |
28×250×40 |
|
|
Drive feed |
||
|
x/y/z cutting speed |
m/min |
6/6/6 |
|
Fast moving speed |
m/min |
10/10/10 |
|
principal axi |
||
|
main shaft speed |
rpm |
6000 |
|
Spindle power (continuous / 30 min) |
kw |
37/51 |
|
x/y/z Spindle torque |
N.m |
48/40/30 |
|
taper hole of spindle |
BT50 |
|
|
Sliding pillow section |
mm |
500×500 |
|
Knife Library (Options) |
||
|
Vertical knife library capacity |
T |
40 |
|
Tool Diameter (full knife / empty) |
mm |
∅110/∅220 |
|
Tabernacle capacity |
T |
40/60 |
|
Tool Diameter (full knife / empty) |
mm |
∅125/∅250 |
|
Tool length |
mm |
400 |
|
Knife weight |
kg |
25 |
|
precision(operative norm GB/T19362.1-2003) |
||
|
positioning accuracy |
mm |
0.055 With a grating ruler/0.028 With a grating ruler/0.02(0.018)With a grating ruler |
|
Repeat positioning accuracy |
mm |
0.035 With a grating ruler/0.018 With a grating ruler/0.013(0.01With a grating ruler) |
| Other | ||
|
Total power capacity |
KVA |
150 |
Standard Layout
|
1.numerical control system |
Siemens |
|
2.Transmission full gear transmission |
3.Hydraulic stabilization system-w / z axis |
|
4.The y-axis static pressure guide rail |
5.Spindle constant-temperature cooling system |
|
6.Pneumatic, hydraulic, centralized lubrication system |
7.Full closed-loop grating ruler for the x / y axis |
|
8.Local protection of machine tools |
9.Local protection of machine tools |
|
10.Knife cooling system |
11.Triccolor lights, lighting |
|
12.Standard accessories and related parts |
13.Commonly used maintenance tools |
Optional Configuration
|
1.Right Angle milling head |
Can be completed in a clip to complete the vertical side processing |
|
2.Growth milling head |
can realize 18000 rqq m high-speed processing |
|
3.Longmen knife bank |
Automatic knife change function |
|
4.High speed gear box |
2 gear automatic speed change torque increased |
|
5.Five-hedral milling head |
Can hold five sides at a time |
|
6.Five-axis milling head and the system |
Can realize the five-axis linkage processing |
|
7.The bench can be selected for domestic and imported products |
|
|
8.The spindle is optional with domestic and imported brands |
|
|
9.This product can be customized according to the customer needs |
|
